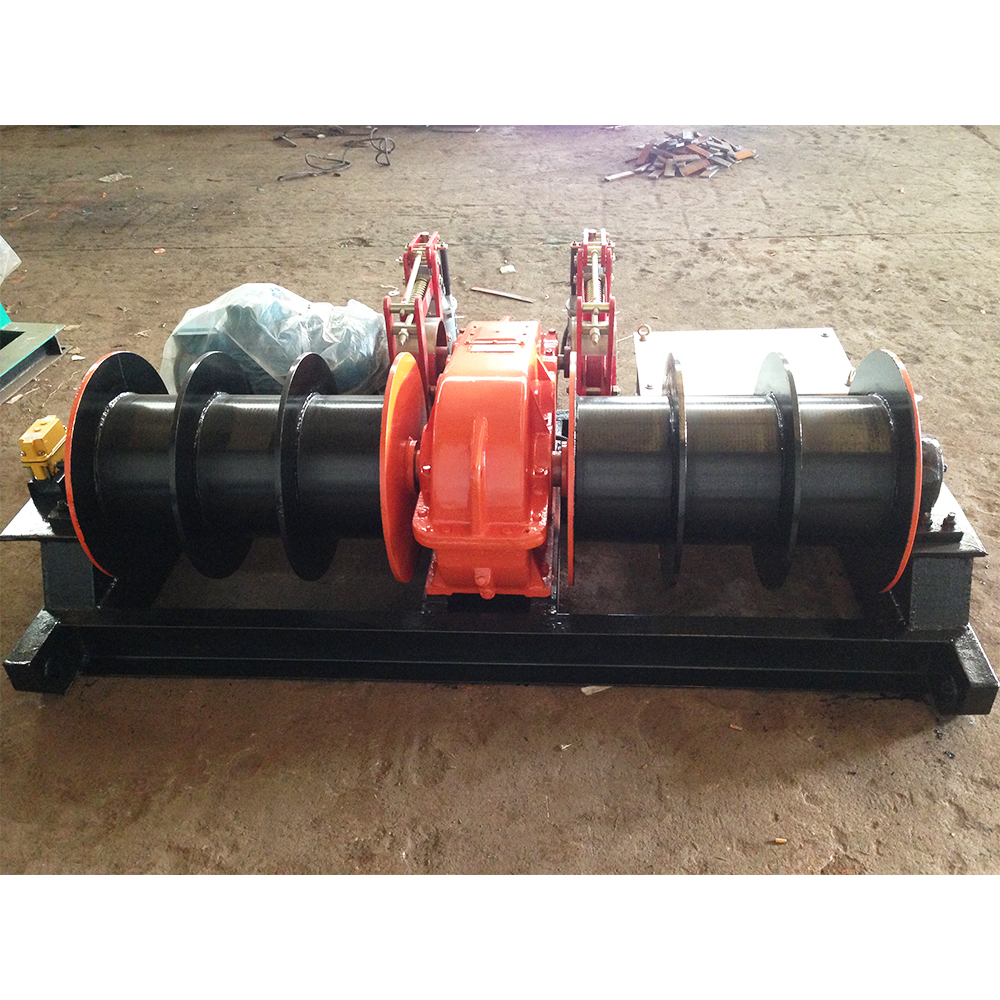

2JM6 × 6 Winch

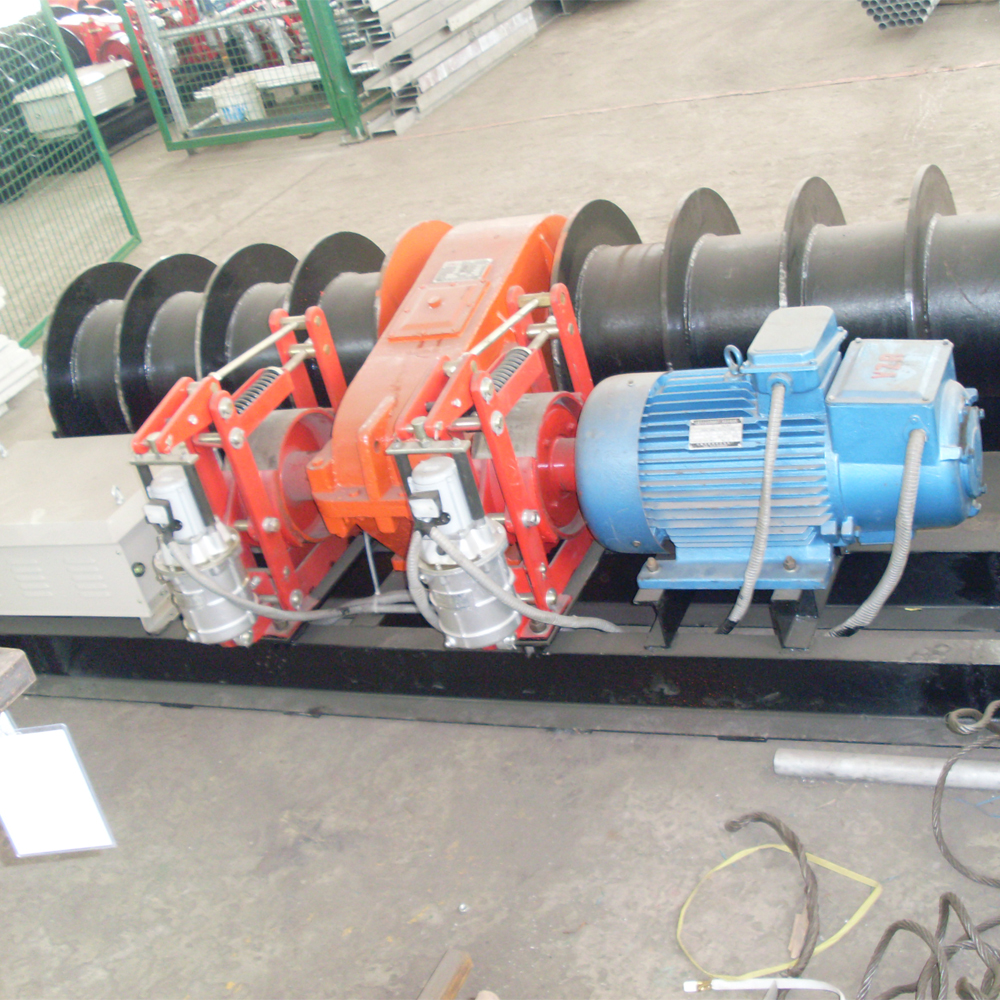

2JM6-8 Rope Winch

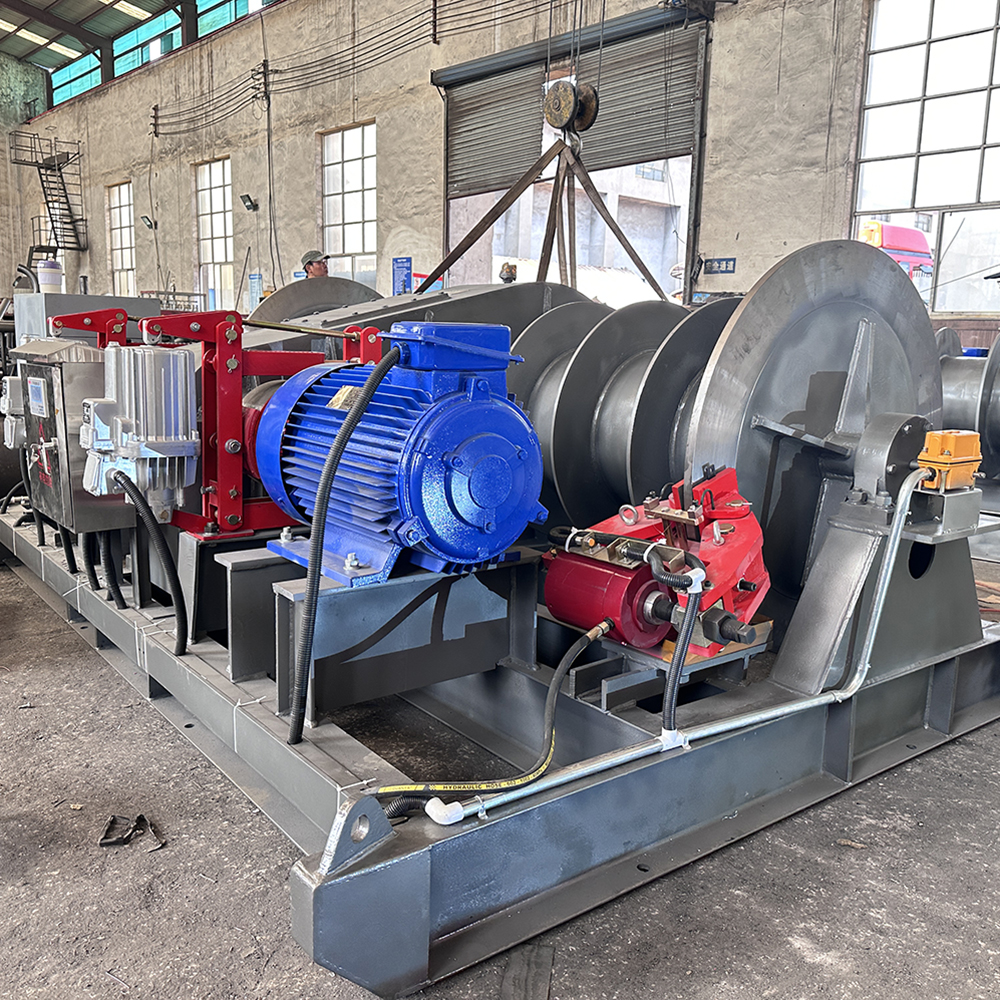

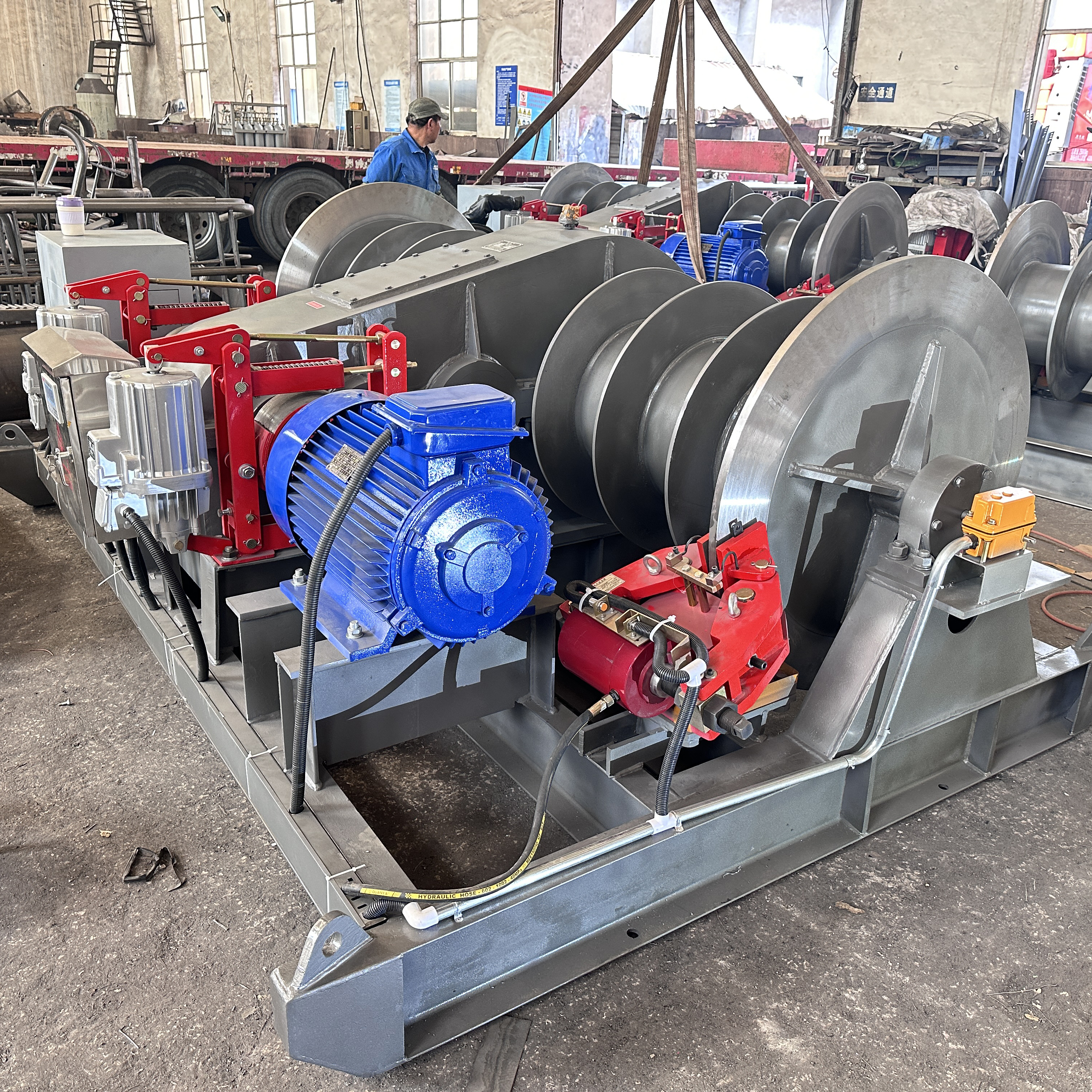

2JM10 × 6 pengereman ganda

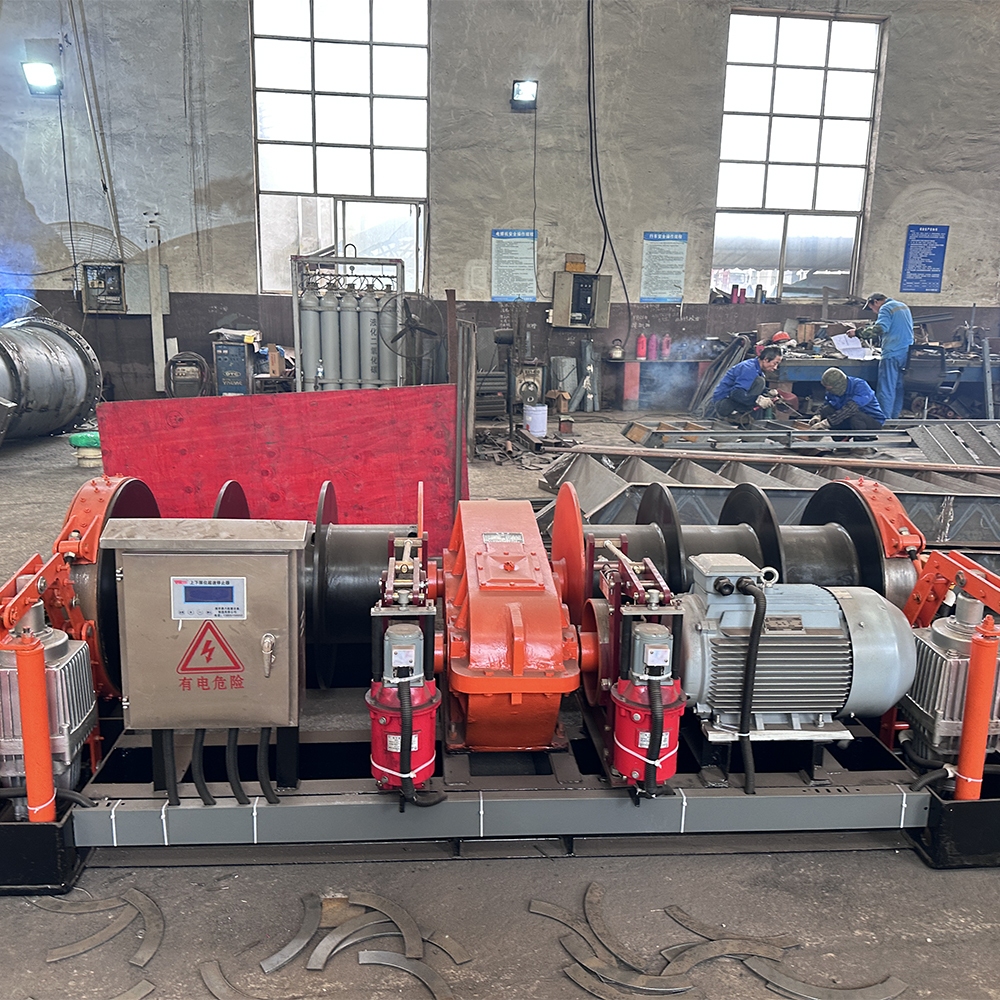

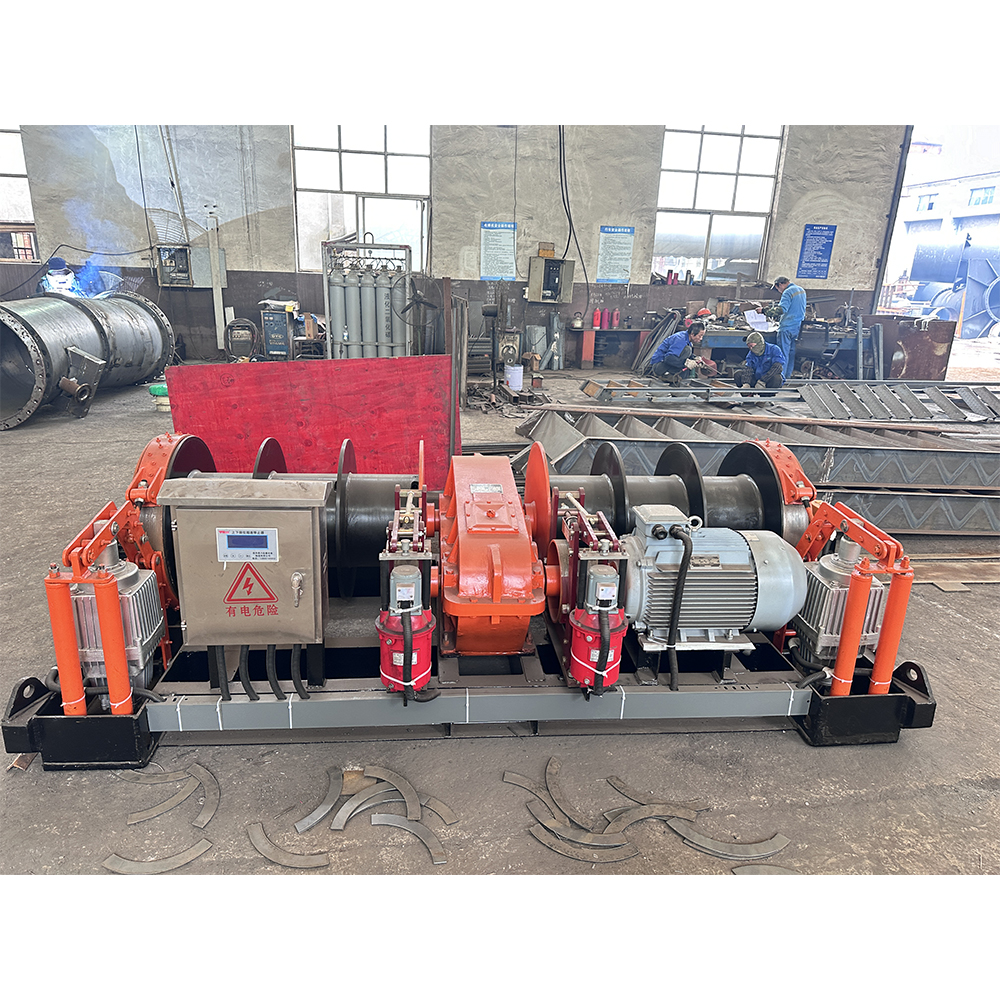

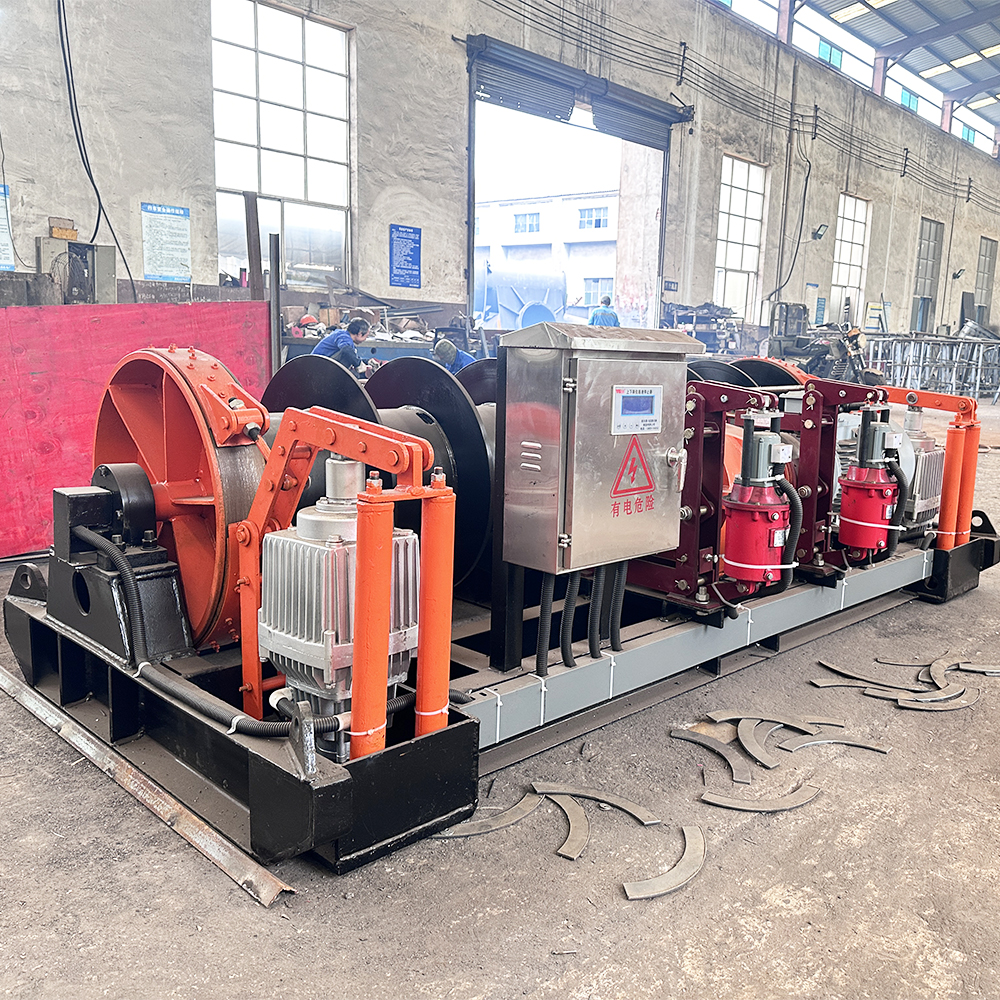

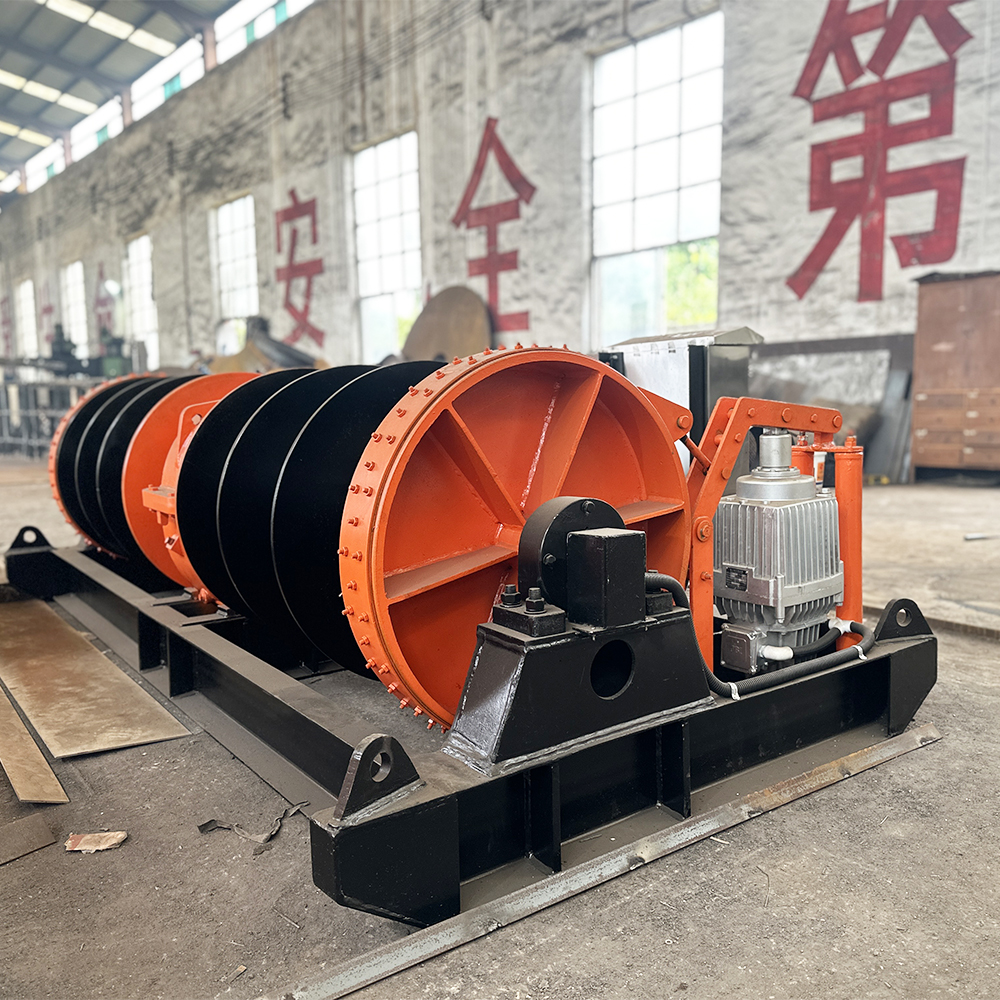

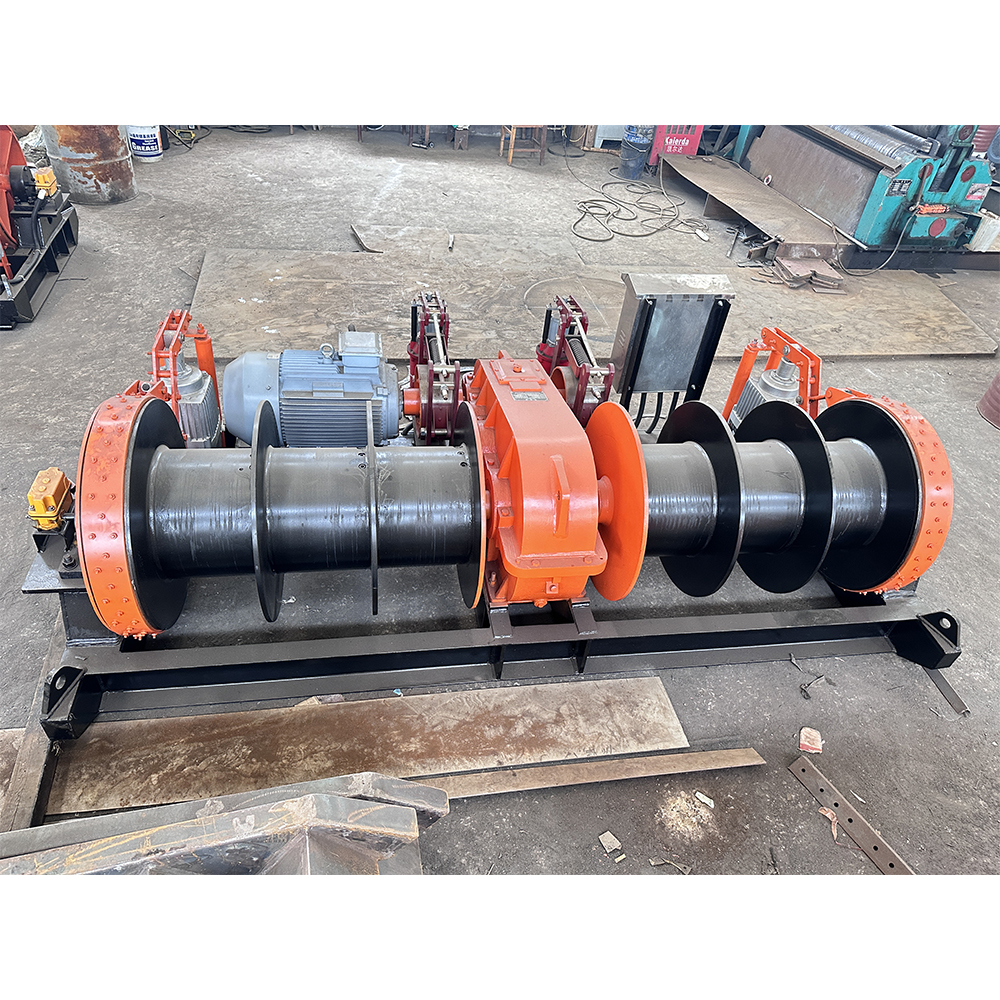

2JM8 × 6 Tipe Sabuk Slow Double Barrel Winch

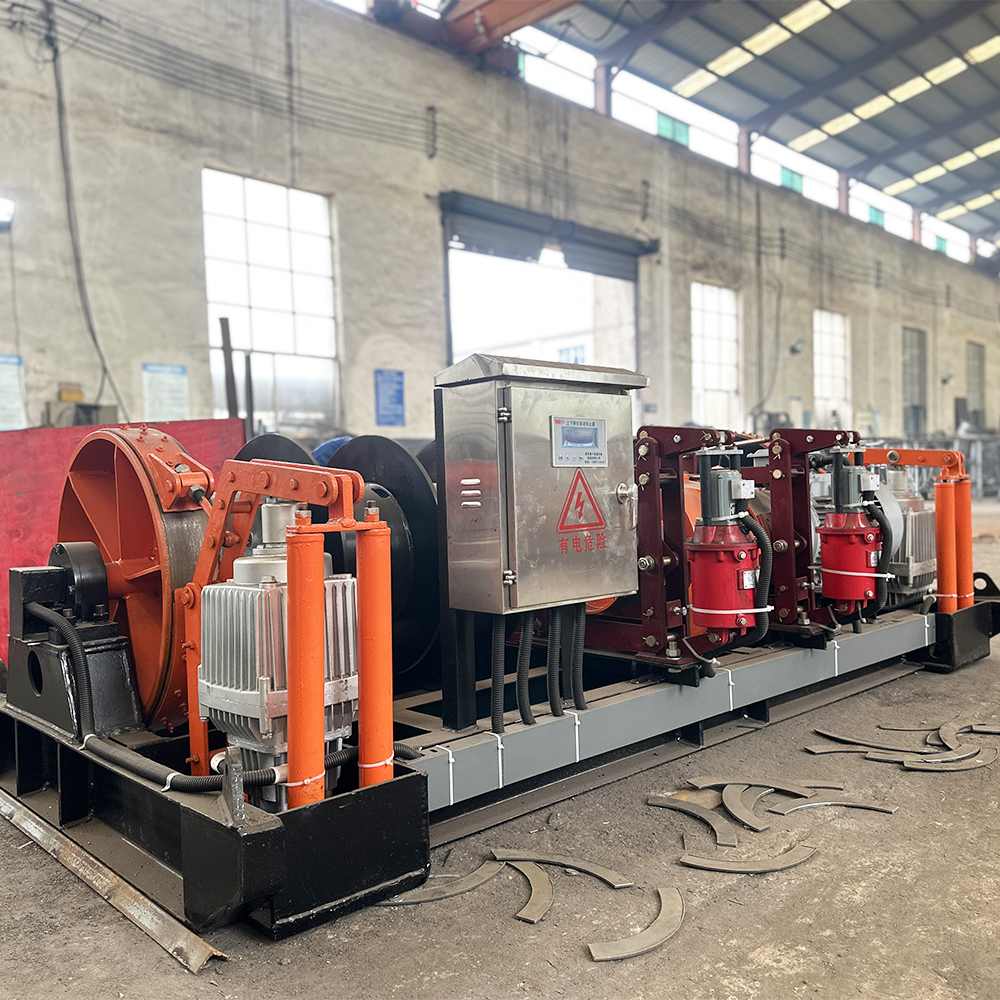

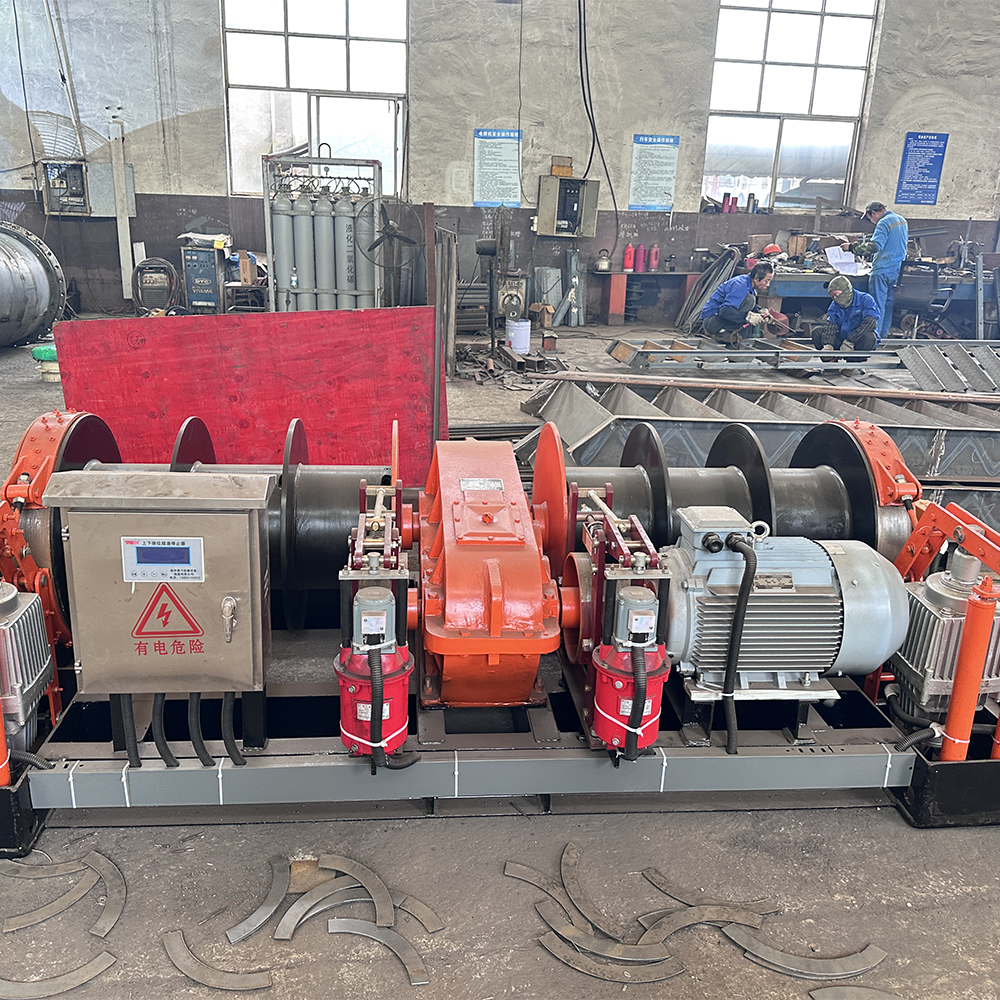

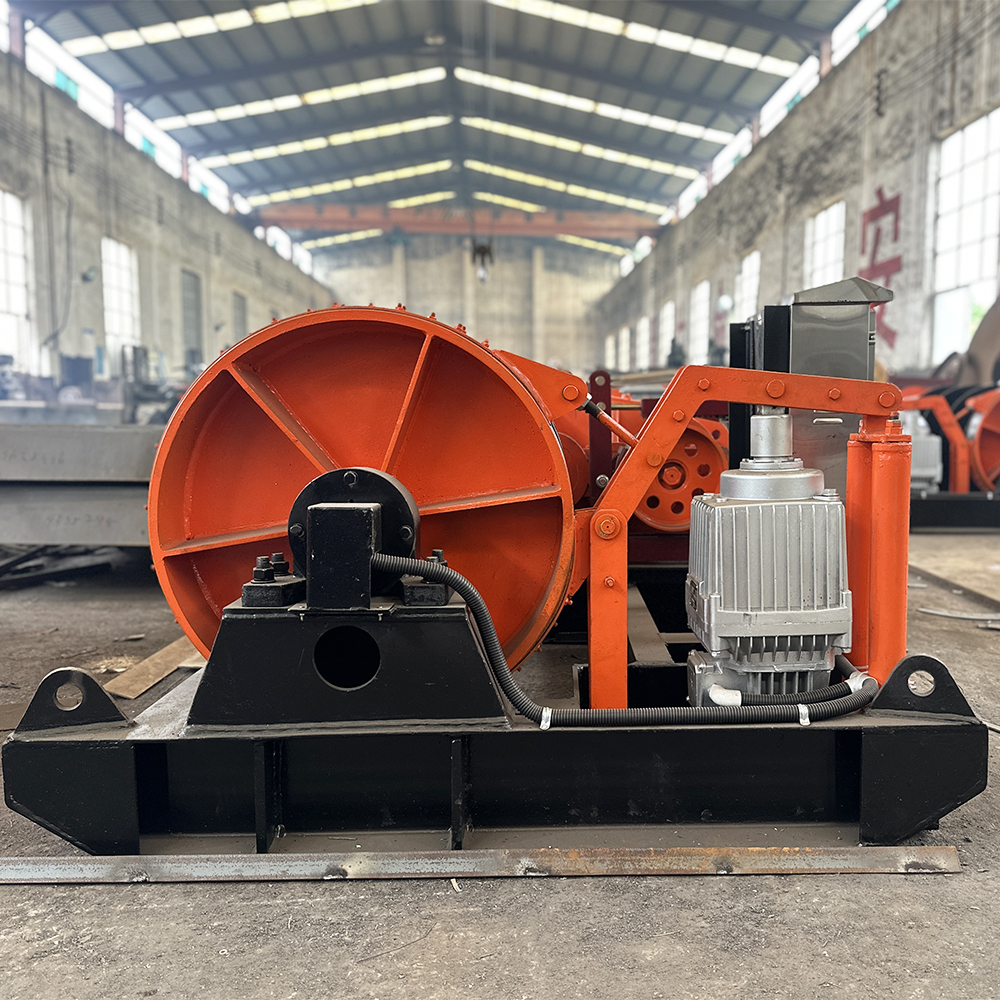

Gaya lengan 2JM10X6

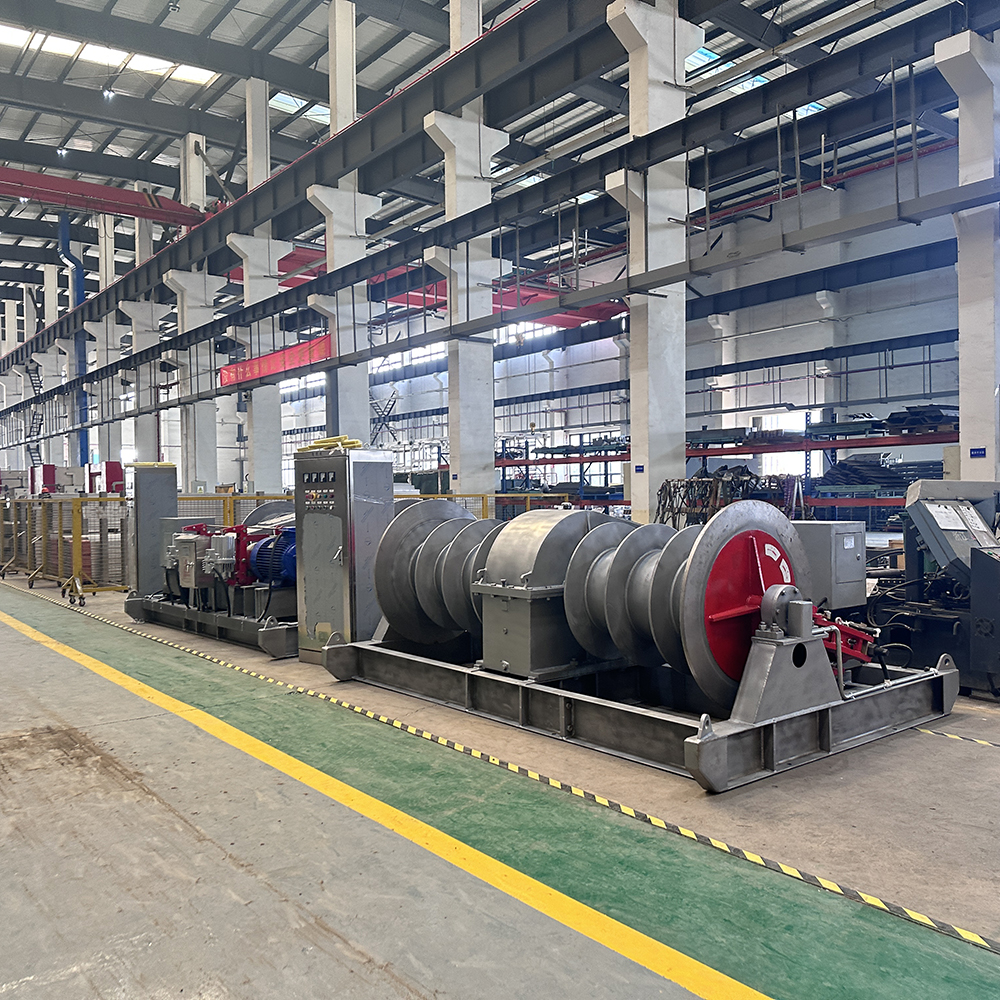

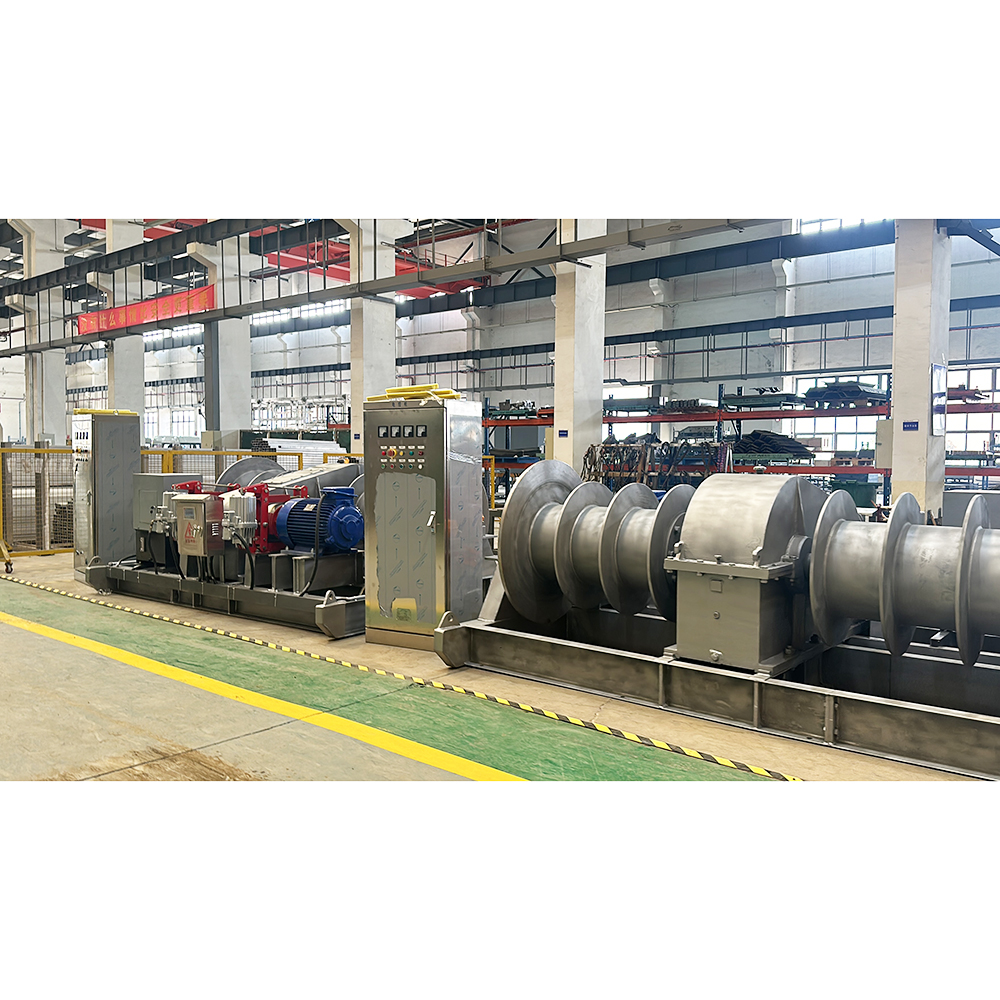

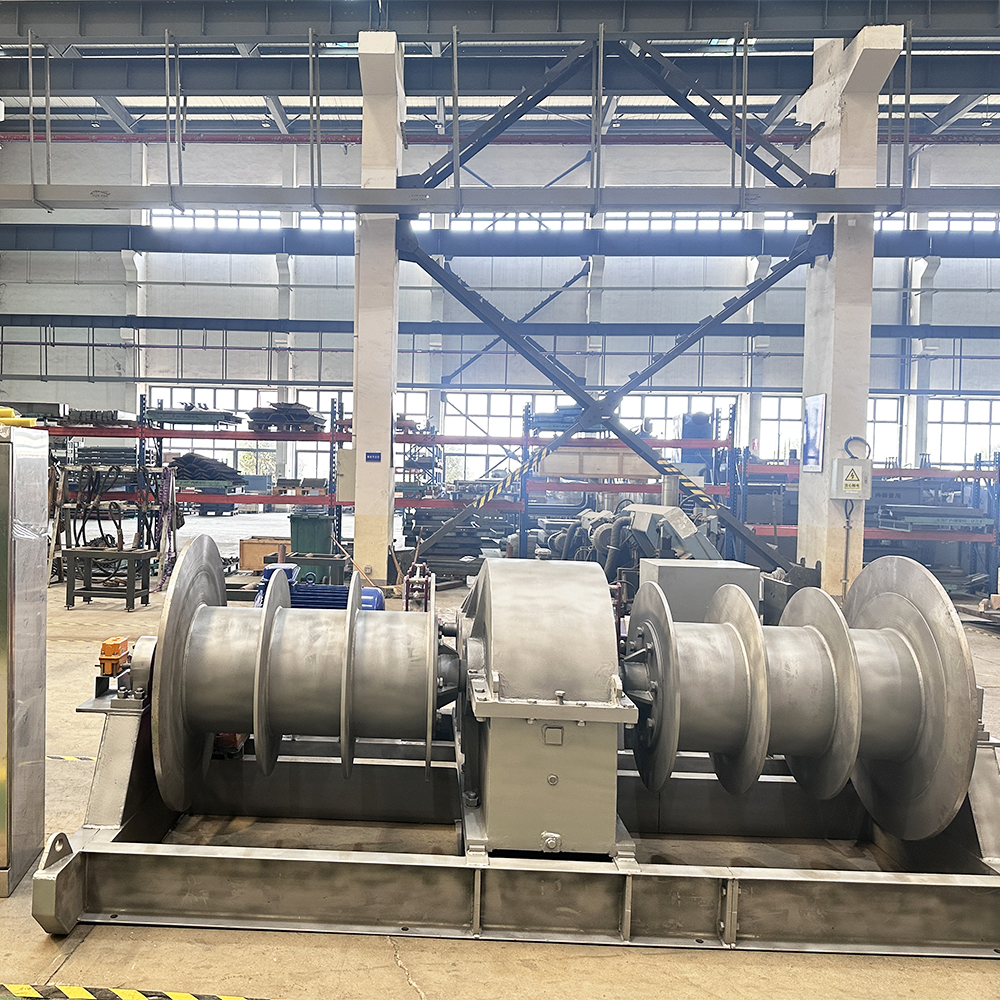

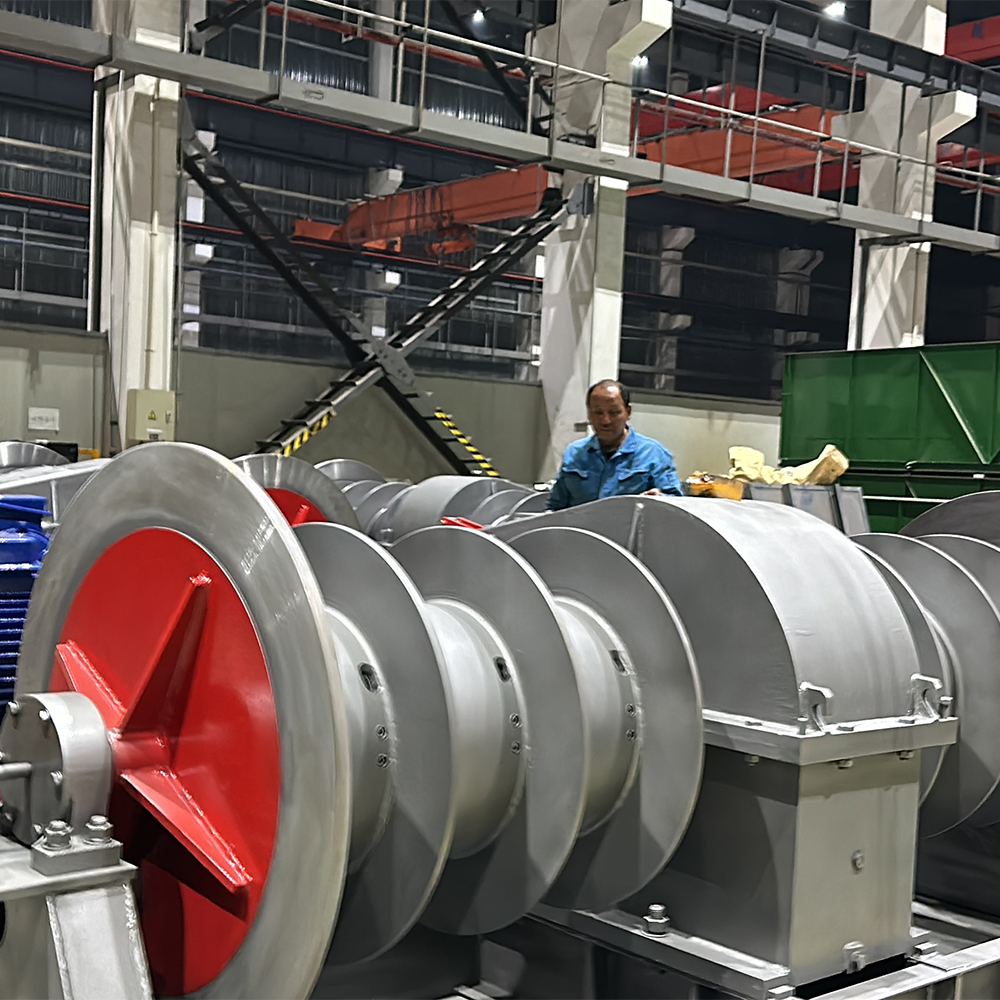

Jenis disk klem 2JM10X6

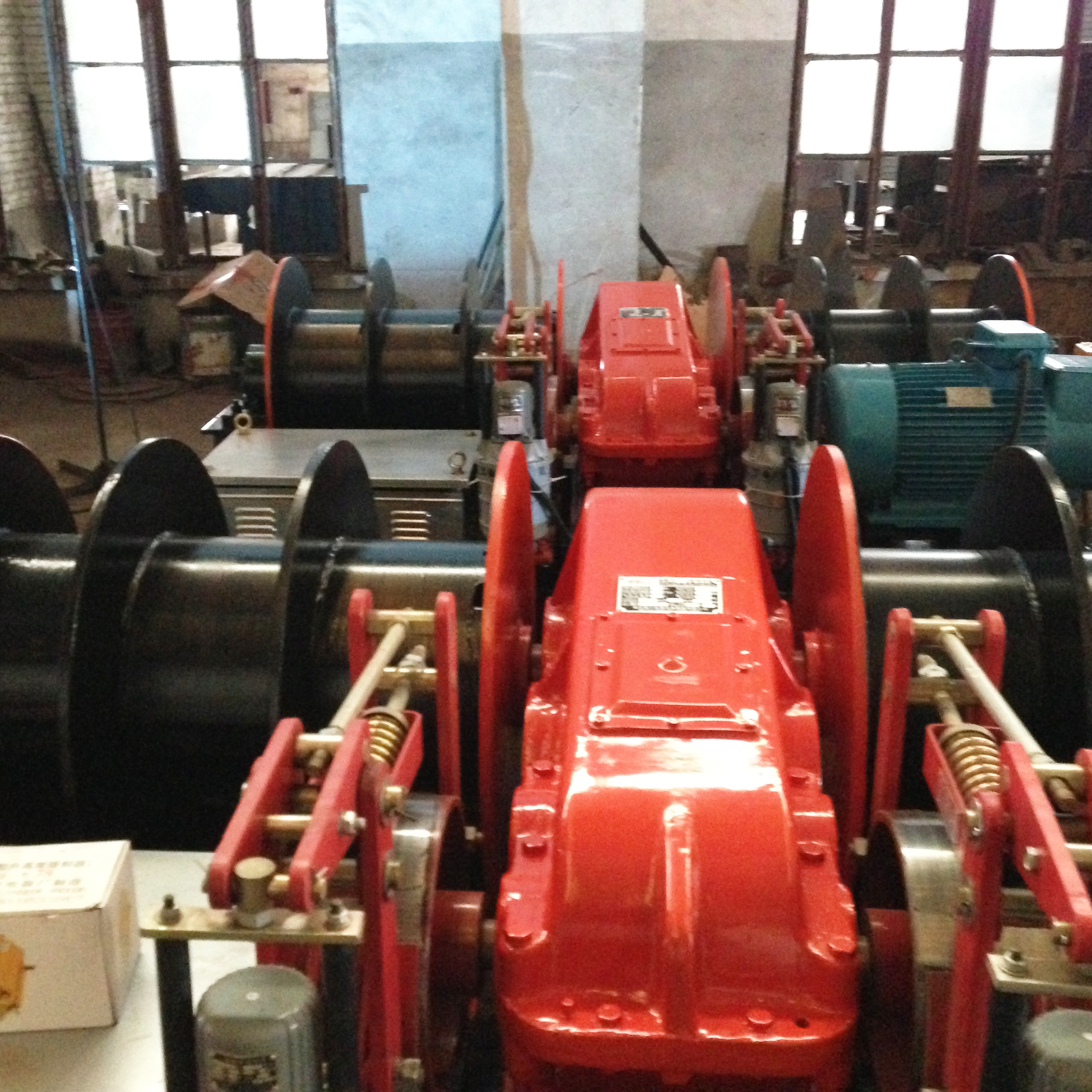

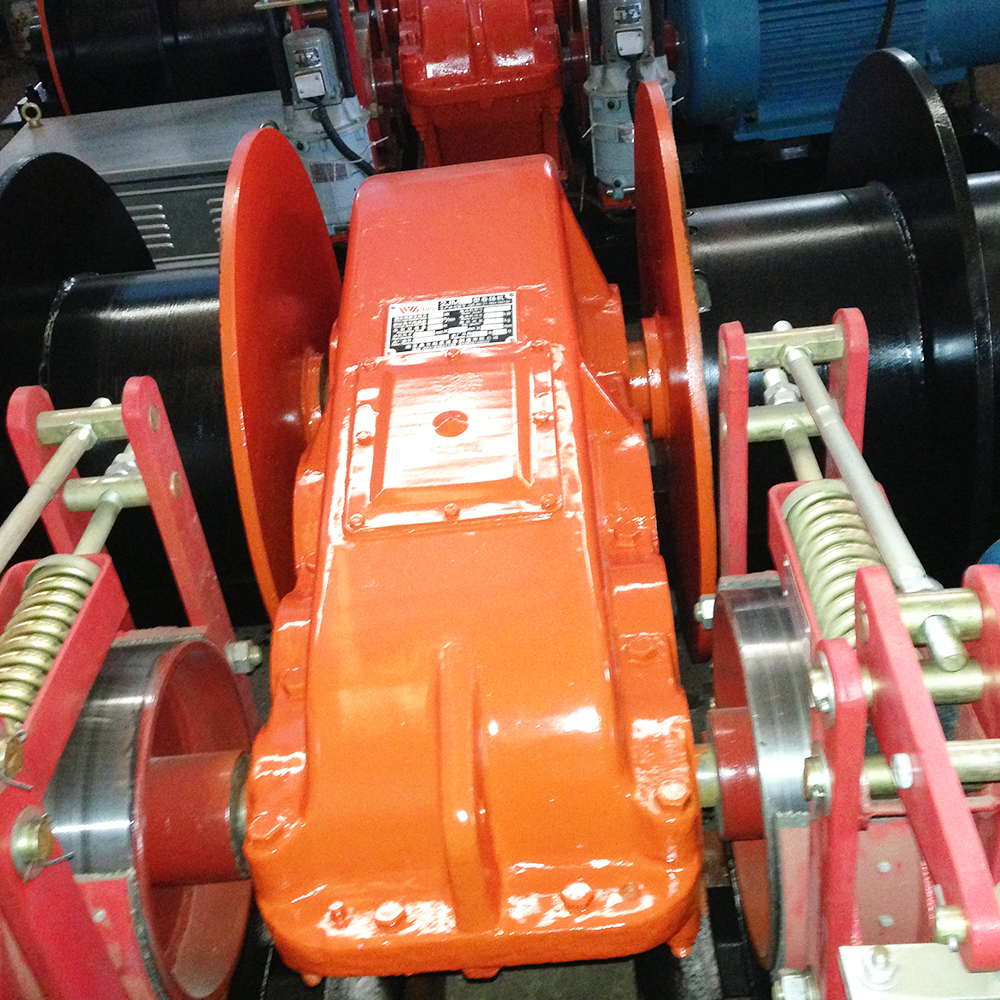

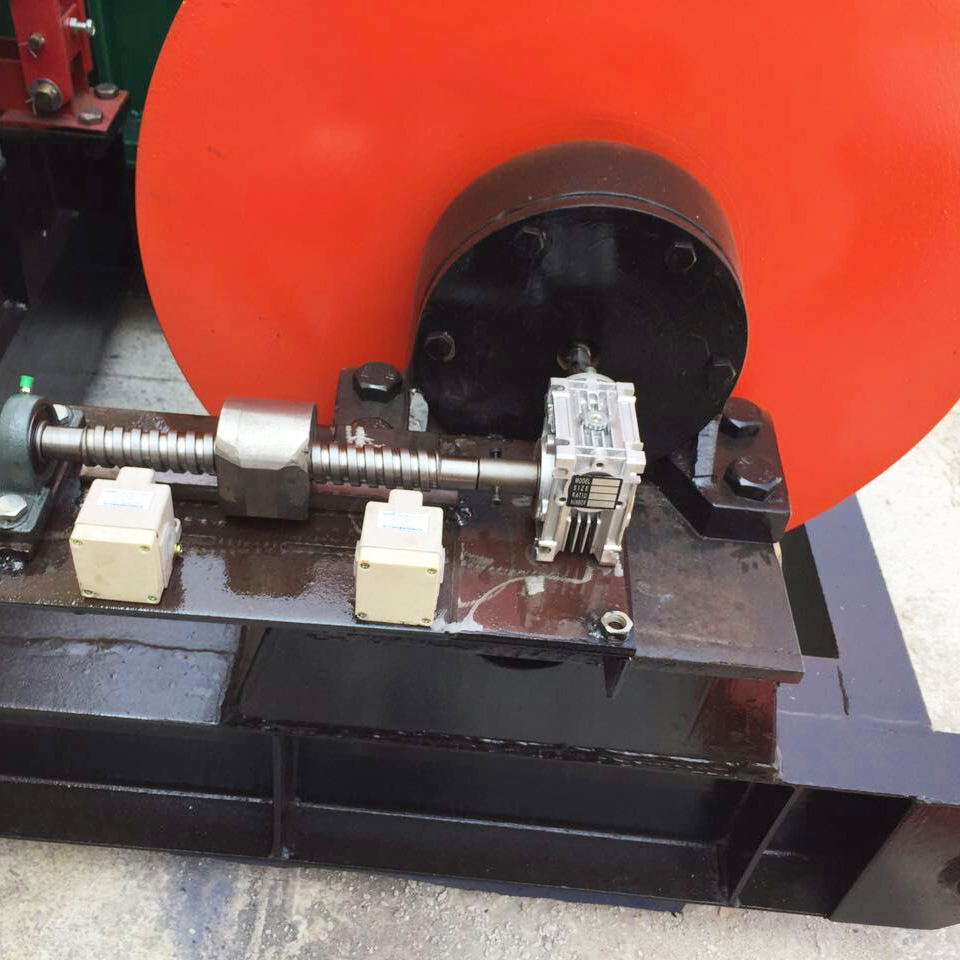

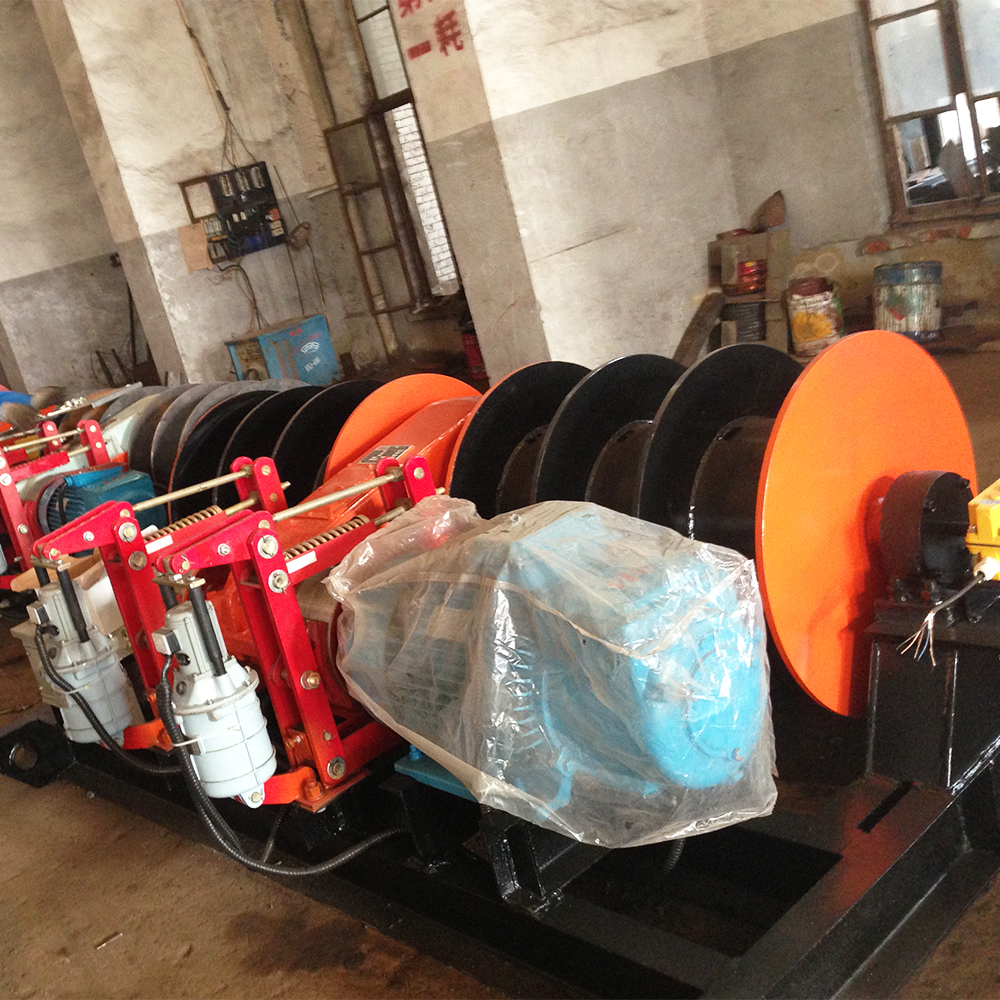

2JM10 ton sekrup winch

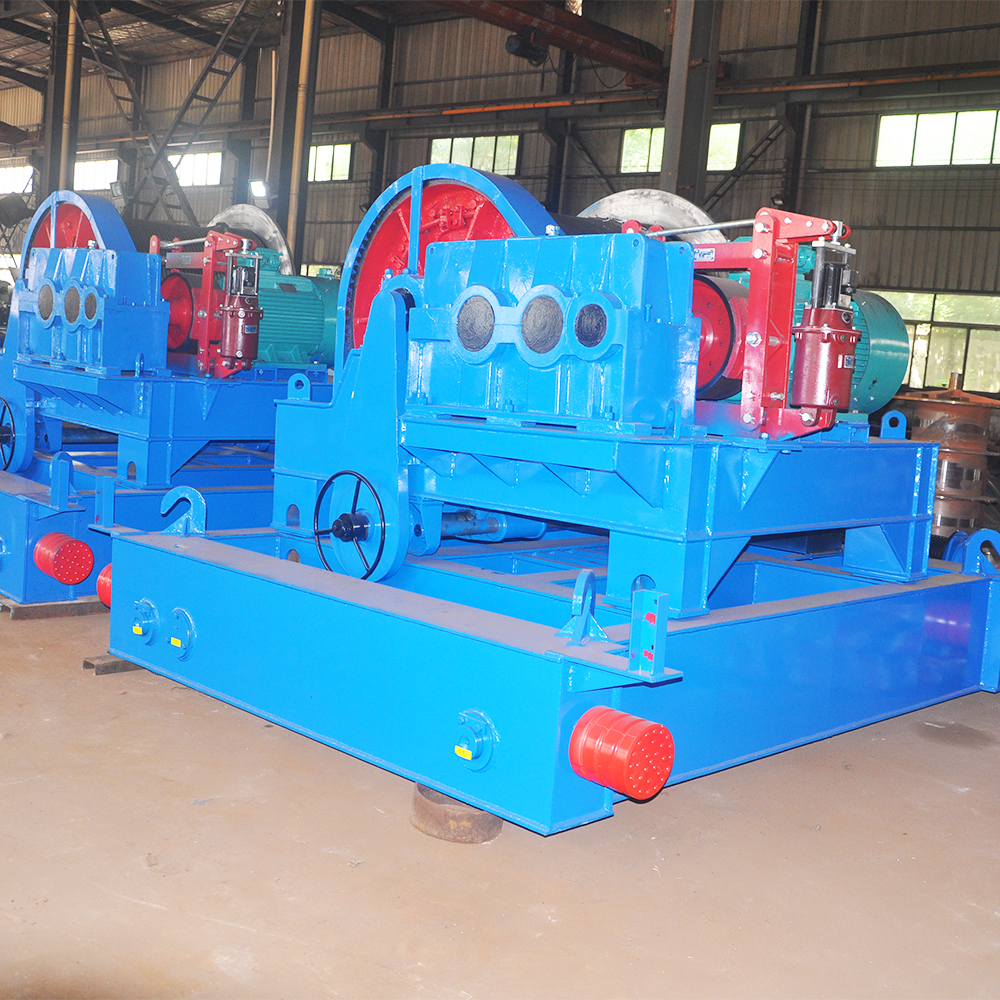

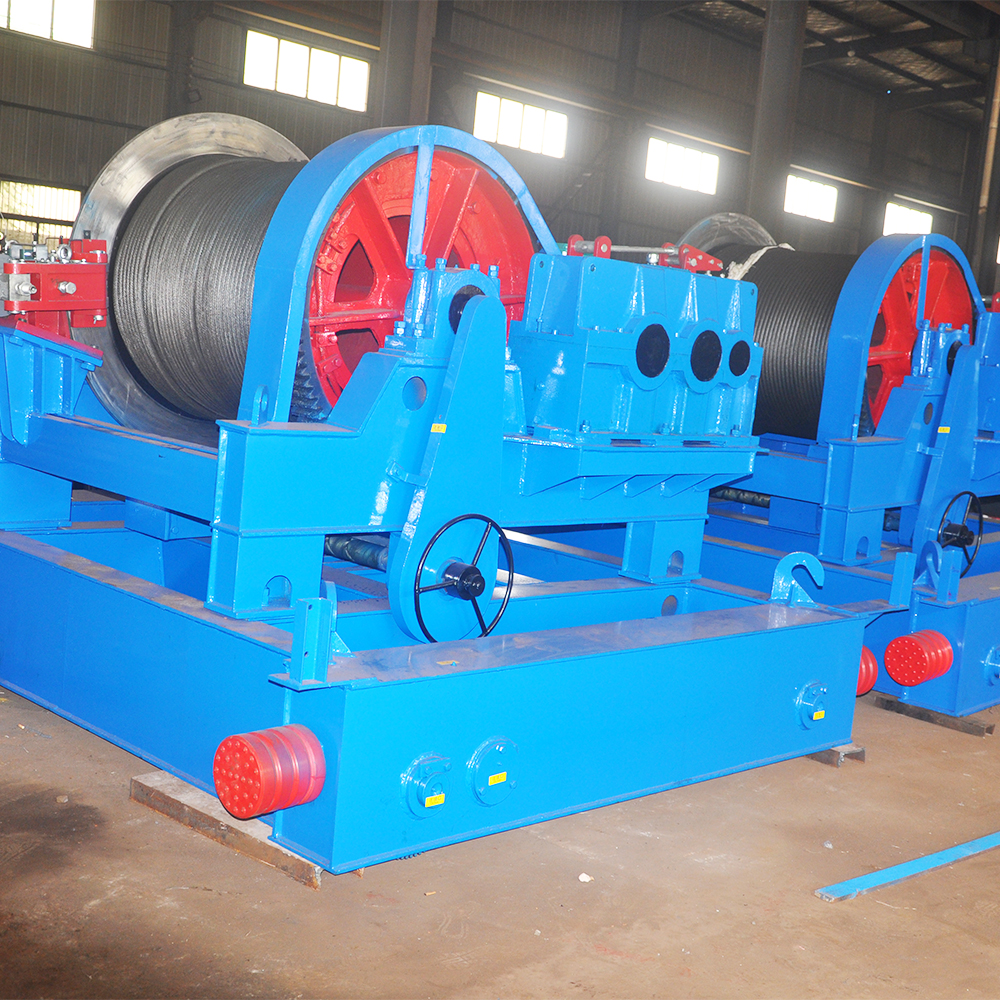

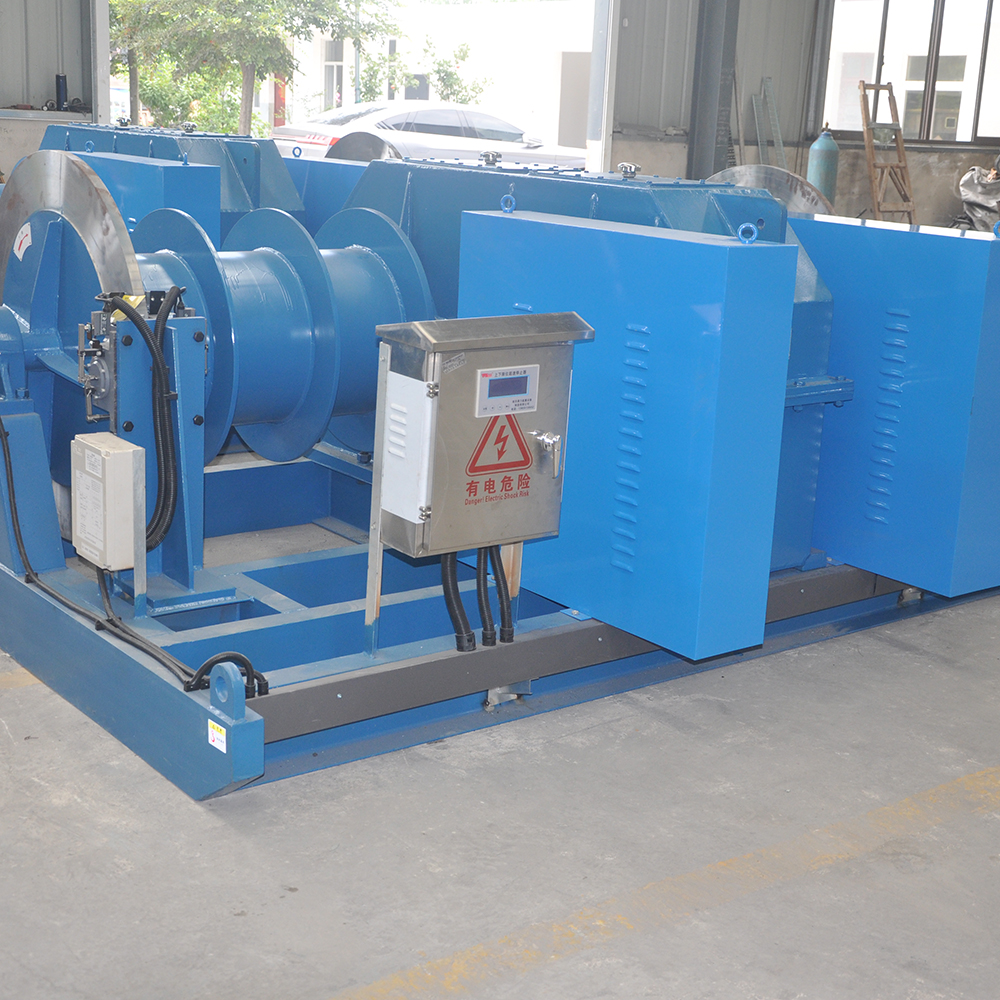

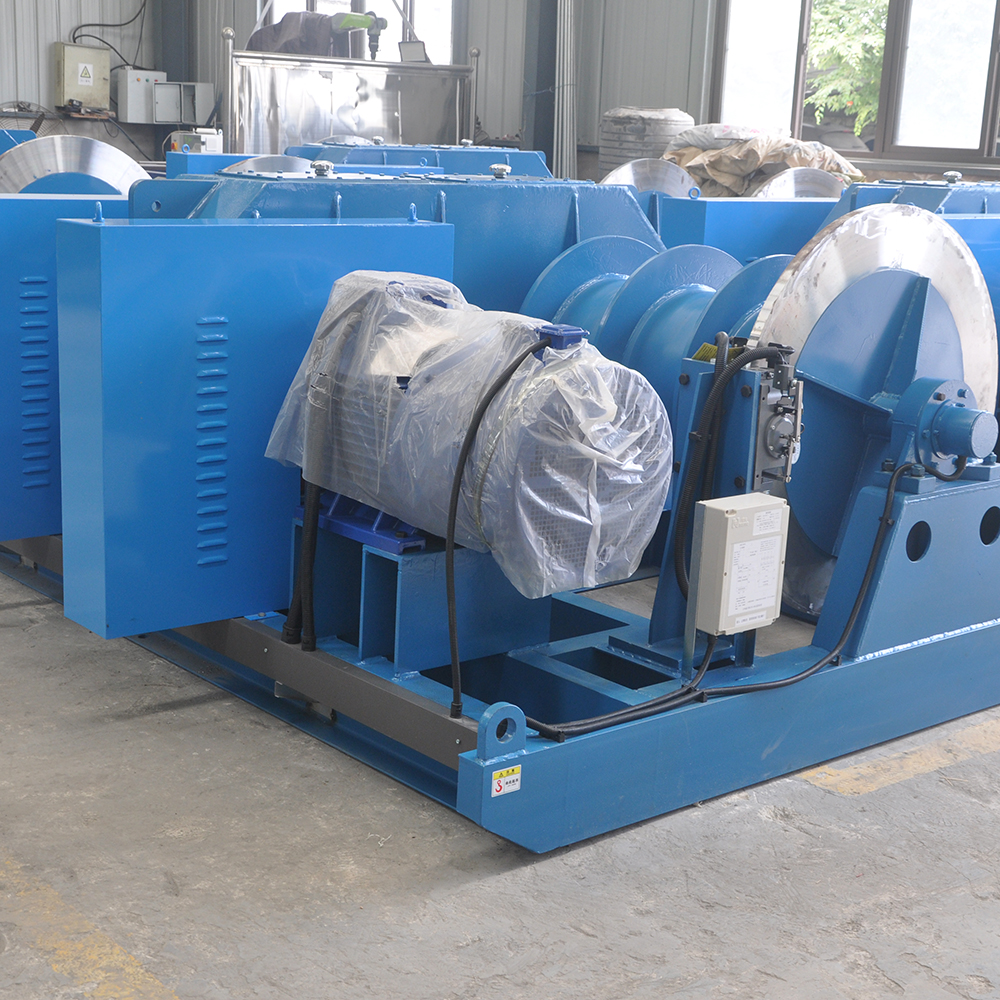

2JM12.5T Winch elektromagnetik
Perkenalan
| Parameter/model dasar | JM6*4 | 2jm6*6 | 2jm8*6 | 2JM10*6 | 2JM10*8 | 2JM12.5*6 | 2JM15*6 |
| Peringkat Tarik Tali Kawat (KN) | 60 | 60 | 80 | 100 | 100 | 125 | 150 |
| Kawat Tali Peringkat Kecepatan (M/Min) | 8.5 | 7.6 | 7.5 | 7.8 | 8 | 8.5 | 9 |
| Diameter minimum tali kawat (mm) | 18 | 20 | 20 | 20 | 20 | 20 | 24 |
| Kapasitas tali drum (m) | 4*80 | 6*100 | 6*80 | 6*100 | 8*100 | 6*120 | 6*120 |
| Diameter drum (mm) | 400 | 400 | 400 | 400 | 400 | 500 | 550 |
| Panjang drum (mm) | 250 | 250 | 250 | 250 | 760 | 300 | 300 |
| Jenis motor | YZR160L-6 | YZR180L-6 | YZR180L-6 | YZR200L-6 | YZR200L-6 | YZR225M-6 | YZR250M |
| Daya Motor (KW)) | 11kw | 15kw | 15kw | 22kw | 22kw | 30kw | 37kw |
| Rem hidrolik | YWZ300/45 | YWZ300/45 | YWZ300/45 | YWZ300/45 | YWZ300/45 | YWZ300/50 | YWZ400/90 |
| Perlengkapan reduksi | ZL500 | ZL500 | ZL650 | ZL850 | ZL850 | ZL1100 | ZS975 |
| Dimensi mesin (l * w * h) | 1813*1498*870 | 2600*2508*1449 | 2930*1620*870 | 3254*1841*1090 | 3200*1750*1100 | 3284*2145*1170 | 3580*2400*1200 |
| Berat mesin (kg) | 2300 | 2200 | 2600 | 3300 | 3900 | 3600 | 4500 |
